Not your size? The 56cm frame is the last available size of this frameset model.

Choose any design and have it built on one of our latest framesets: Dr. Fixie PISTA or Dr. Fixie URBAN.

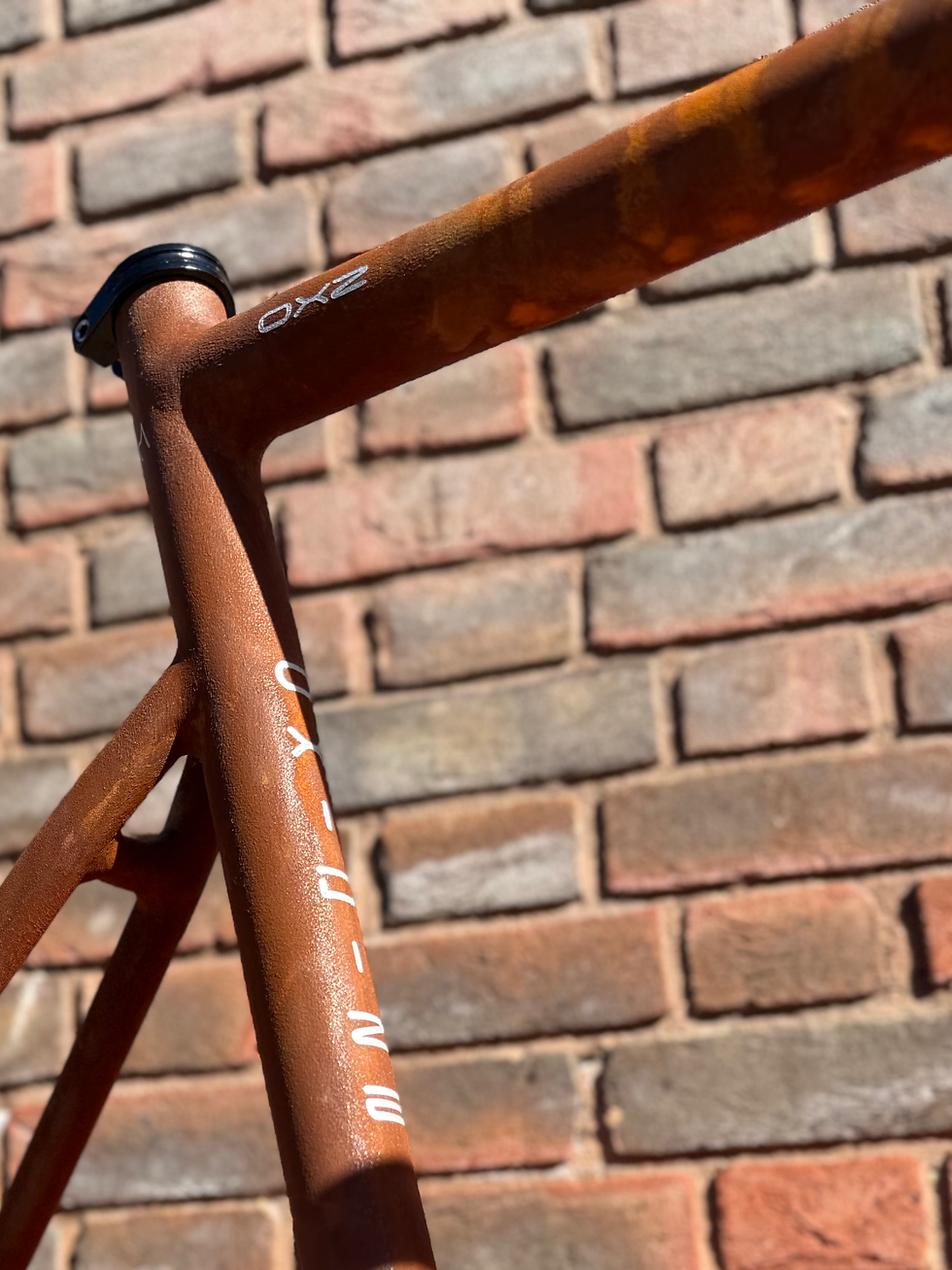

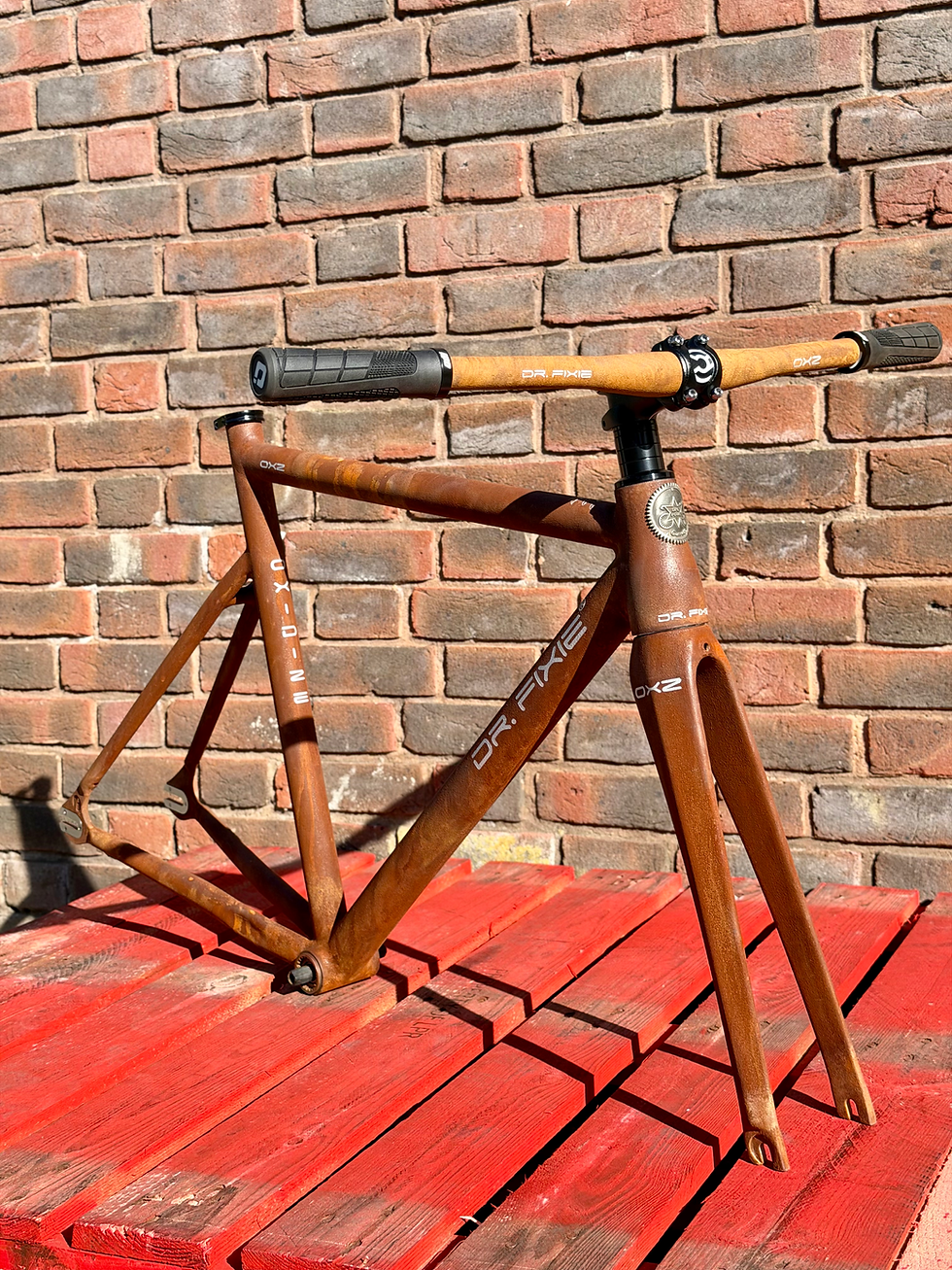

Introducing the Dr. Fixie OXIDIZE (OXZ), our latest innovation in bicycle design. This masterpiece features a stunningly realistic rusty paint effect seamlessly blended with a sleek silver metallic finish. Experience the perfect fusion of vintage aesthetics and modern craftsmanship.

Dr. Fixie®

COMPLETED BIKE STANDARD BUILD

Crankset: Miche X-Press 48T.
Pedals: SHIMANO FLAT PD-EF102.
Track Cog – 16T
Wheels: Gipiemme Pista / Miche Xpress Wheels (+£114) - Miche Pistard Wheels (+£173)
Tyres: Schwalbe 700x25C Anti-punctures
Handlebar: Cinelli Wand Straight - Cinelli Lola Bullhorn - Tifosi Drop
Cinelli 31.8mm Handlebar Stem
Front brake
Saddle: Madison Roam

Components may change to enhance quality. Customize your bike to fit your style and budget, including handlebars and more. Contact us for a quote.

SPECIFICATION

- Frameset Only: Double butted AL6061 aero aluminum with 1-1/8" - 1.5" tapered head tube.
- Integrated headset (not included)
- Internal diameter seat tube 31,6mm
- 68mm Bottom bracket shell
- BSA cup thread 1.37 "x 24T
- Track hub 120mm
- Max Clearance at rear Tyre Section: 28mm
- Frame weight 1560g (+/- 50g)
- 34,9mm seat post clamp
- Dr. fixie OXZ Handlebar
- Cinelli Ant stem

Fork: 1-1/2” to 1-1/8" Tapered full Carbon fork
Would suit 700c
Steerer Length: 300mm
Material: T800 Carbon Fiber
Fit for Tire: 700C, Max 25C Tire
Rim Brake Only
Weight: 360g+/-20g

GEOMETRIES

Top performances on track with the right balance of stiffness and strength combined with maximum reliability and lightweight.
This frame is intentionally crafted without pre-drilled holes for a rear brake.

FRAME SIZE 56CM

CC - 510 mm
CF - 560 mm
F - 620 mm
L - 565 mm
P - 390 mm
T - 130 mm
