Note: The aero down tube frameset is out of stock and now features a sleek rounded design. Check out the new Dr. Fixie ONE - Black and Silver - for reference.

Not your size? Choose any design and have it built on one of our latest framesets: Dr. Fixie PISTA or Dr. Fixie URBAN.

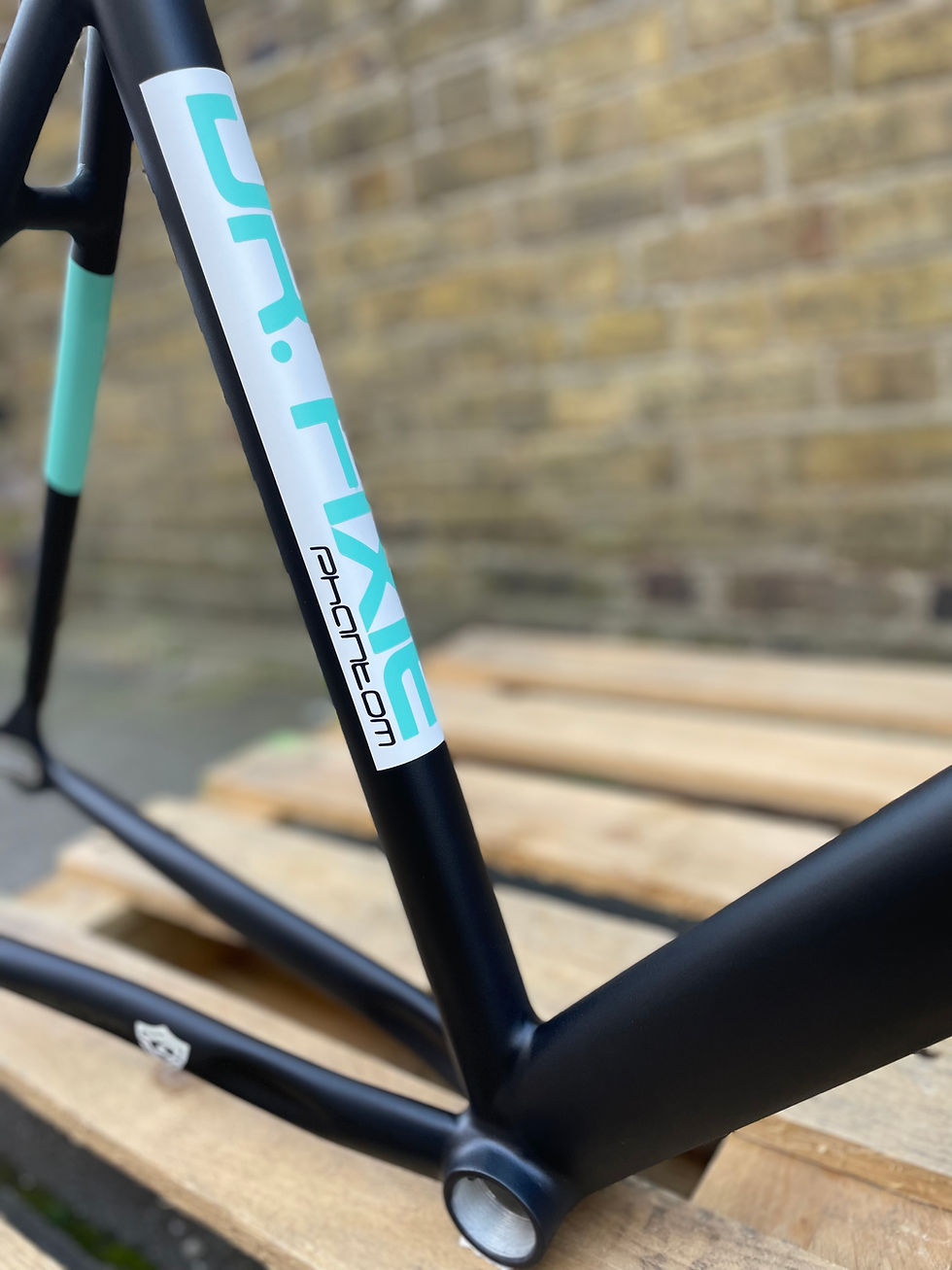

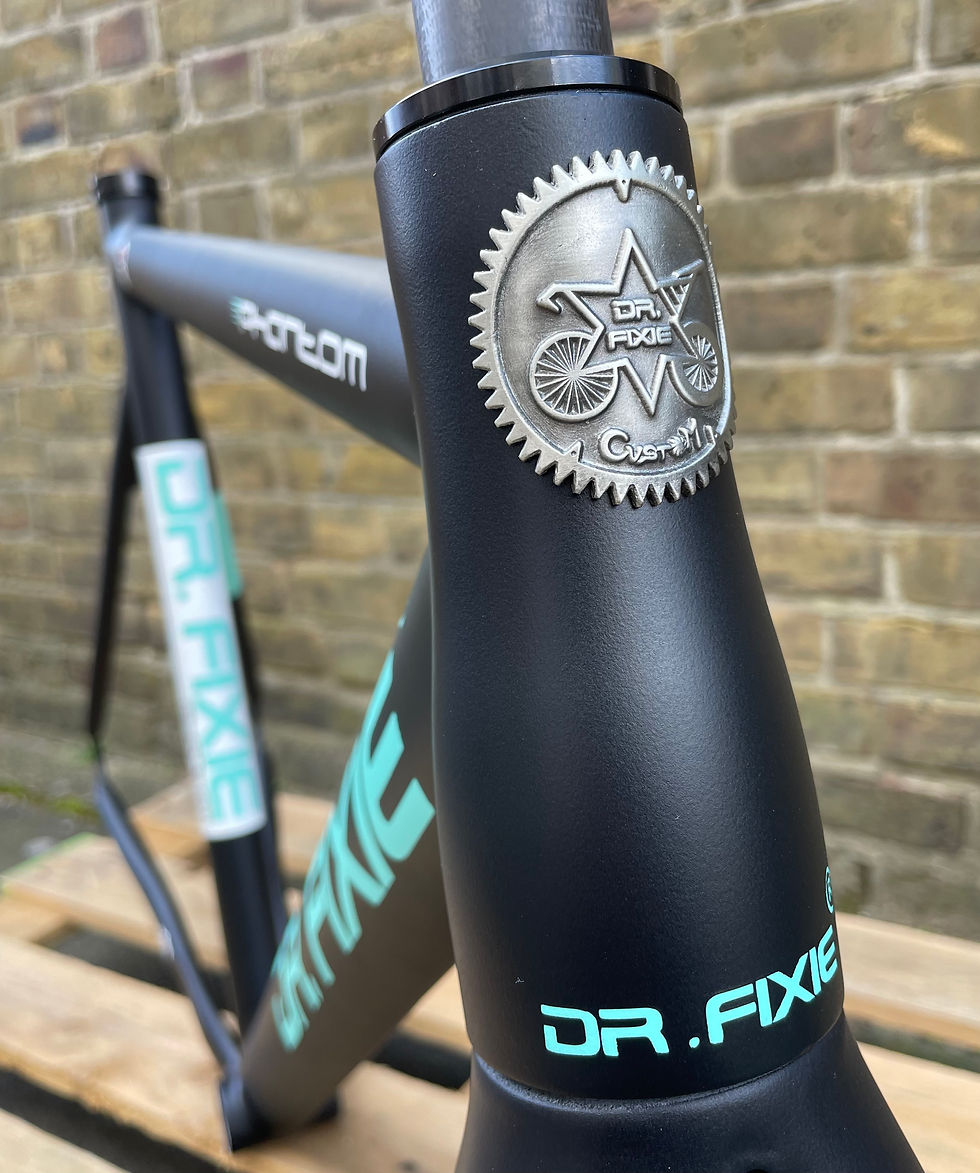

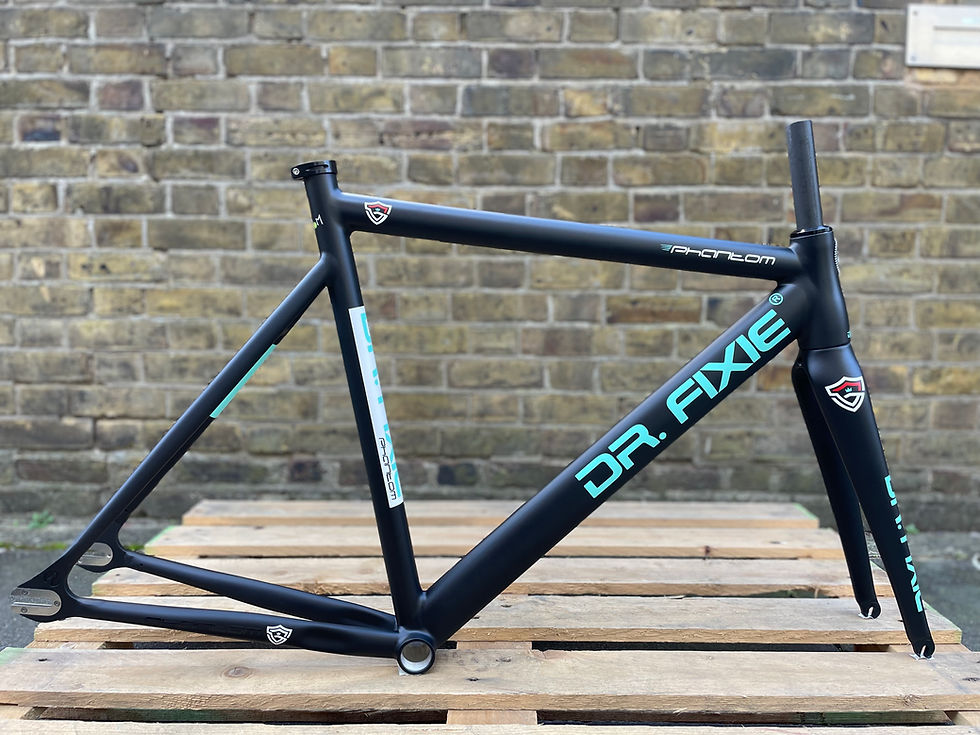

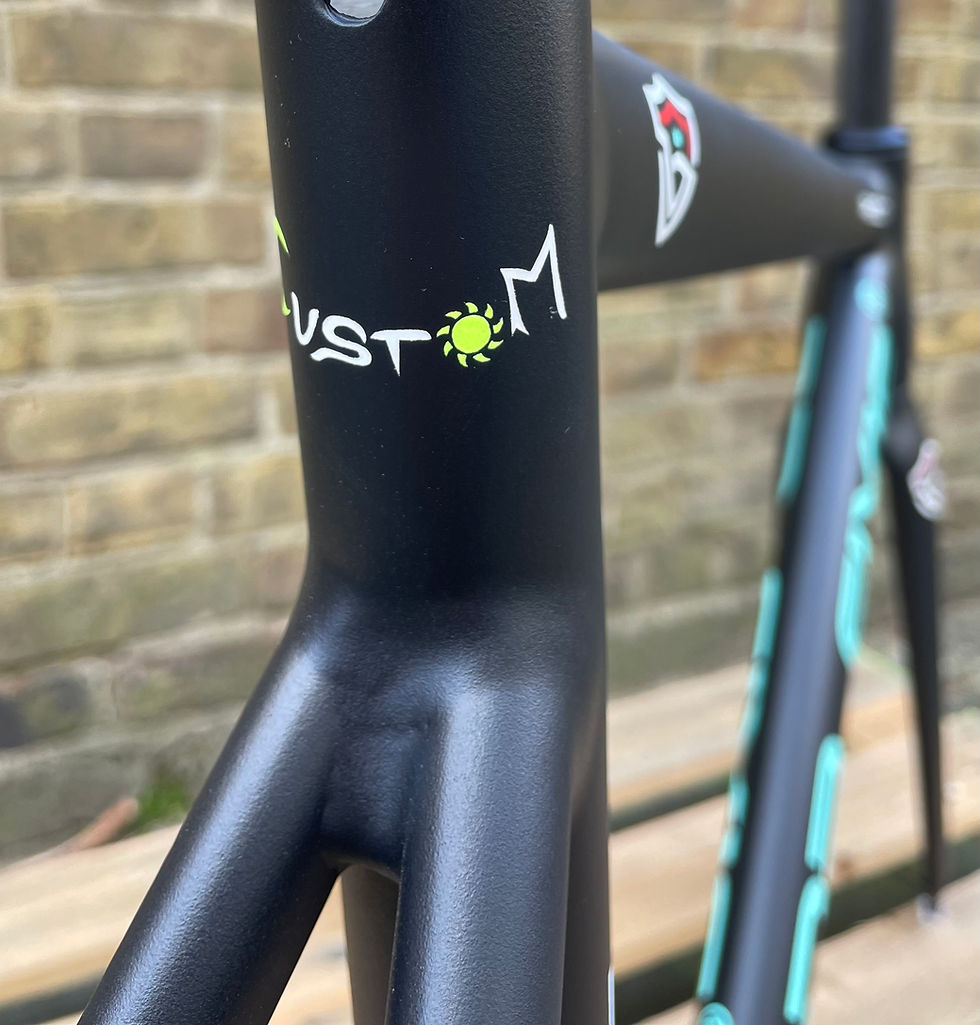

Dr. Fixie PHANTOM – Unmatched vibe, pure style.

Please note that the Phantom frameset has been updated with a smaller branding font on both the down tube and seat tube. The top tube graphic has also been reduced in size. In addition, the Dr. Fixie logo has been removed from the fork for a cleaner, more minimalist look.

Please check the product photos for your reference.

Want your preferred colors? We can customize it to your liking. Contact us with your request.

Dr. Fixie®

Completed bike standard build:

Crankset: Miche X-Press 48T.
Pedals: SHIMANO FLAT PD-EF102.
Cog: Fixed 16T
Wheels: Front and rear Gipiemme Aluminum 30mm Black profile
Tyres: Schwalbe 700x25C Anti-punctures.
Handlebar: Cinelli Wand Straight - Deda Zero Drop
Stem: Cinelli 31.8mm.
Supplied with front brakes
Saddle: Madison Roam
Seat post: CINELLI Vai

Components may change to enhance quality. Customize your bike to fit your style and budget, including handlebars and more. Contact us for a quote.

SPECIFICATIONS

Frame: Double butted AL6061 aero aluminum with 1-1/8" - 1.5" tapered head tube.
Aero section tubes.
Max Clearance at rear Tyre Section: 28mm
Frame weight 1560g (+/- 50g)

- Fork: Full 3k carbon fork: 1-1/2” to 1-1/8" tapered.
Would suit 700c
Steerer Tube : Top 1-1/8" (28.6mm), Down 39.8mm, 300mm Lenght
Max Clearance at Tyre Section: 25mm
Fit For V Brake
Weight: Appro x420+/-20g

Top performances on track with the right balance of stiffness and strength combined with maximum reliability and lightweight.
This frame is intentionally crafted without pre-drilled holes for a rear brake.

GEOMETRIES

FRAME SIZE 56mm

CC - 510 mm
CF - 560 mm
F - 620 mm
L - 565 mm
P - 390 mm
T - 130 mm
